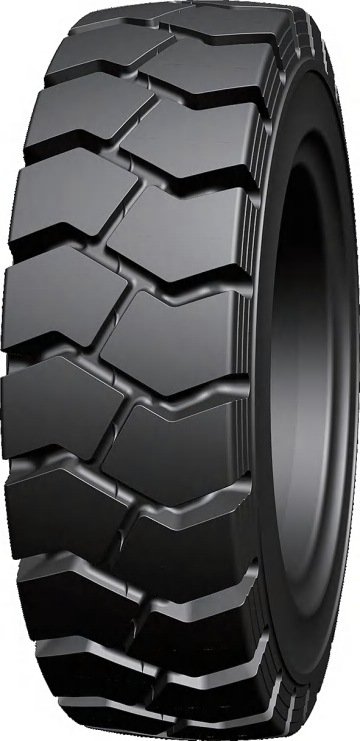

DONGHAO
DH-902
6.50-10/5.00 – 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0)
Bias construction. 2 sizes listed, 6.50-10/5.00 to 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0).
Specifications by size
| Size | Construction | Recommended rim | Overall diameter (mm) | Section width (mm) | Max load (kg) | Enquire |
|---|---|---|---|---|---|---|
| 6.50-10/5.00 | Bias | 5.00F-10 | 566 | 155 | 2,715 | Enquire 6.50-10/5.00 |
| 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0) | Solid | 7.0-15 | 687 | 208 | 4,060 | Enquire 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0) |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: manufacturer published data for this pattern
