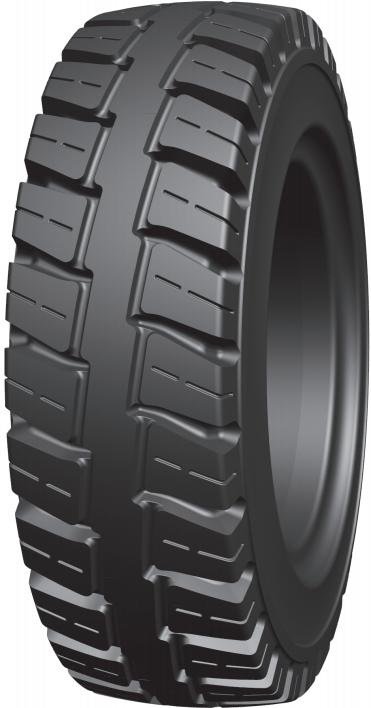

DONGHAO
DH-905
6.50-10/5.00 – 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0)
Bias construction. 5 sizes listed, 6.50-10/5.00 to 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0).
Specifications by size
| Size | Construction | Recommended rim | Overall diameter (mm) | Section width (mm) | Max load (kg) | Enquire |
|---|---|---|---|---|---|---|
| 6.50-10/5.00 | Bias | 5.00F-10 | 571 | 168 | 2,715 | Enquire 6.50-10/5.00 |
| 7.00-12/5.00 | Bias | 5.00S-12 | 658 | 172 | 3,105 | Enquire 7.00-12/5.00 |
| 18x7-8/4.33 (180/70-8/4.33) | Solid | 4.33R-8 | 458 | 157 | 2,430 | Enquire 18x7-8/4.33 (180/70-8/4.33) |
| 21x8-9/6.00 (200/75-9/6.00) | Solid | 6.00E-9 | 531 | 187 | 2,890 | Enquire 21x8-9/6.00 (200/75-9/6.00) |
| 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0) | Solid | 7.0-15 | 700 | 223 | 4,060 | Enquire 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0) |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: manufacturer published data for this pattern
