DONGHAO

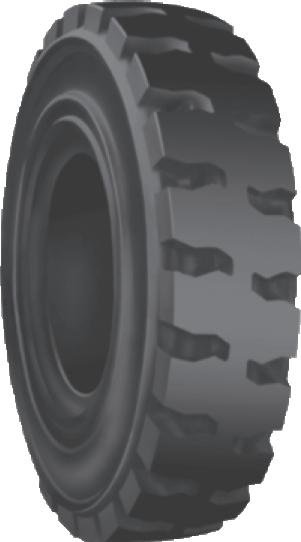

DH-302
15x4.5-8/3.00 – 12.00-20/8.50
Solid construction. 9 sizes listed, 15x4.5-8/3.00 to 12.00-20/8.50.
- Sizes listed
- 9
- Construction
- solid · bias
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | Recommended rim | Overall diameter (mm) | Section width (mm) | Max load (kg) | Enquire |
|---|---|---|---|---|---|---|
| 15x4.5-8/3.00 | Solid | 3.00D-8 | 380 | 104 | 1,005 | Enquire 15x4.5-8/3.00 |
| 15x4.5-8/3.25 | Solid | 3.25I-8 | 380 | 104 | 1,090 | Enquire 15x4.5-8/3.25 |
| 5.00-8/3.00 | Bias | 3.00D-8 | 460 | 125 | 1,255 | Enquire 5.00-8/3.00 |
| 18x7-8/4.33 | Solid | 4.33R-8 | 450 | 162 | 2,430 | Enquire 18x7-8/4.33 |
| 6.00-9/4.00 | Bias | 4.00E-9 | 525 | 144 | 1,975 | Enquire 6.00-9/4.00 |
| 6.50-10/5.00 | Bias | 5.00F-10 | 574 | 155 | 2,715 | Enquire 6.50-10/5.00 |
| 7.00-12/5.00 | Bias | 5.00S-12 | 656 | 162 | 3,105 | Enquire 7.00-12/5.00 |
| 28x9-15/7.0 (8.15-15/7.0) | Solid | 7.0-15 | 698 | 212 | 4,060 | Enquire 28x9-15/7.0 (8.15-15/7.0) |
| 12.00-20/8.50 | Bias | 8.5-20 | 1,049 | 286 | 8,920 | Enquire 12.00-20/8.50 |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: DONGHAO pneumatic and solid tire catalogue
