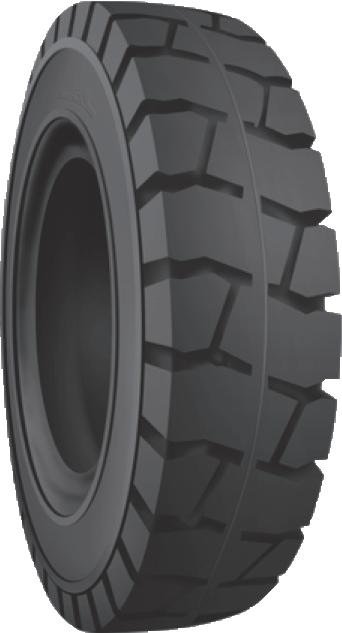

DONGHAO
DH-304
5.00-8/3.00 – 14.00-24/10.00
Bias construction. 10 sizes listed, 5.00-8/3.00 to 14.00-24/10.00.
- Sizes listed
- 10
- Construction
- bias · solid
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | Recommended rim | Overall diameter (mm) | Section width (mm) | Max load (kg) | Enquire |
|---|---|---|---|---|---|---|
| 5.00-8/3.00 | Bias | 3.00D-8 | 460 | 125 | 1,255 | Enquire 5.00-8/3.00 |
| 6.50-10/5.00 | Bias | 5.00F-10 | 574 | 155 | 2,715 | Enquire 6.50-10/5.00 |
| 7.00-12/5.00 | Bias | 5.00S-12 | 656 | 162 | 3,105 | Enquire 7.00-12/5.00 |
| 28x9-15/7.0 (8.15-15/7.0) | Solid | 7.0-15 | 698 | 212 | 4,060 | Enquire 28x9-15/7.0 (8.15-15/7.0) |
| 8.25-15/6.50 | Bias | 6.5-15 | 792 | 200 | 5,085 | Enquire 8.25-15/6.50 |
| 12.00-20/8.00 | Bias | 8.0-20 | 1,120 | 290 | 8,640 | Enquire 12.00-20/8.00 |
| 12.00-20/8.50 | Bias | 8.5-20 | 1,120 | 290 | 8,920 | Enquire 12.00-20/8.50 |
| 12.00-24/8.50 | Bias | 8.5-24 | 1,218 | 296 | 9,125 | Enquire 12.00-24/8.50 |
| 14.00-20/10.00 | Bias | 10.0-20 | 1,230 | 340 | 10,800 | Enquire 14.00-20/10.00 |
| 14.00-24/10.00 | Bias | 10.0-24 | 1,330 | 356 | 12,165 | Enquire 14.00-24/10.00 |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: DONGHAO pneumatic and solid tire catalogue
