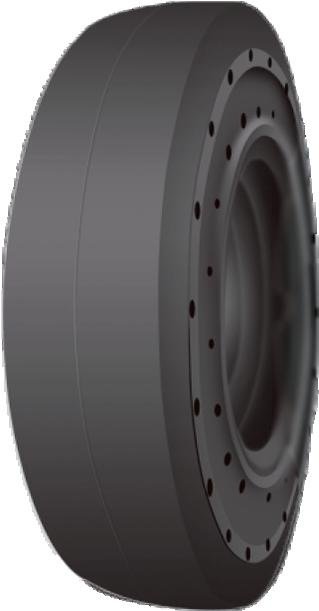

DONGHAO
DH-305
6.50-10/5.00 – 20.5-25/17.00
Bias construction. 4 sizes listed, 6.50-10/5.00 to 20.5-25/17.00.
- Sizes listed
- 4
- Construction
- bias · solid
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | Recommended rim | Overall diameter (mm) | Section width (mm) | Max load (kg) | Enquire |
|---|---|---|---|---|---|---|
| 6.50-10/5.00 | Bias | 5.00F-10 | 580 | 174 | 2,715 | Enquire 6.50-10/5.00 |
| 28x9-15/7.0 | Solid | 7.0-15 | 722 | 233 | 4,060 | Enquire 28x9-15/7.0 |
| 250-15/7.0 | Bias | 7.0-15 | 722 | 233 | 5,220 | Enquire 250-15/7.0 |
| 20.5-25/17.00 | Bias | 17.00/2.0 | 1,490 | 520 | 12,650 | Enquire 20.5-25/17.00 |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: DONGHAO pneumatic and solid tire catalogue
