DONGHAO

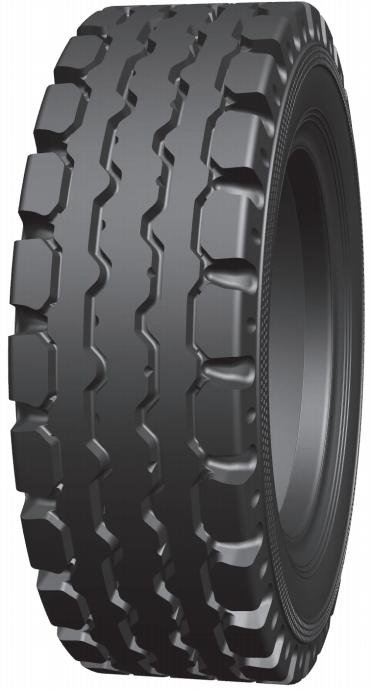

DH-910
6.50-10NHS – 21x8-9NHS (200/75-9NHS)
Bias construction. 5 sizes listed, 6.50-10NHS to 21x8-9NHS (200/75-9NHS).
- Sizes listed
- 5
- Construction
- bias · solid
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | PR / Star | Tube | Recommended rim | Overall diameter (mm) | Section width (mm) | Tread depth (mm) | Max load (kg) | Inflation (kPa) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.50-10NHS | Bias | 10PR | Tube type | 5.00F | 590 | 175 | 11 | 1,655 | 790 | Enquire 6.50-10NHS |
| 7.00-12NHS | Bias | 12PR | Tube type | 5.00S | 676 | 190 | 12 | 2,375 | 860 | Enquire 7.00-12NHS |
| 16x6-8NHS | Solid | 16PR | Tube type | 4.33R | 425 | 152 | 12 | 1,500 | 1,000 | Enquire 16x6-8NHS |
| 18x7-8NHS (180/70-8NHS) | Solid | 14PR | Tube type | 4.33R | 465 | 173 | 9 | 1,505 | 970 | Enquire 18x7-8NHS (180/70-8NHS) |
| 21x8-9NHS (200/75-9NHS) | Solid | 14PR | Tube type | 6.00E | 535 | 200 | 12 | 2,040 | 1,000 | Enquire 21x8-9NHS (200/75-9NHS) |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: DONGHAO pneumatic and solid tire catalogue
