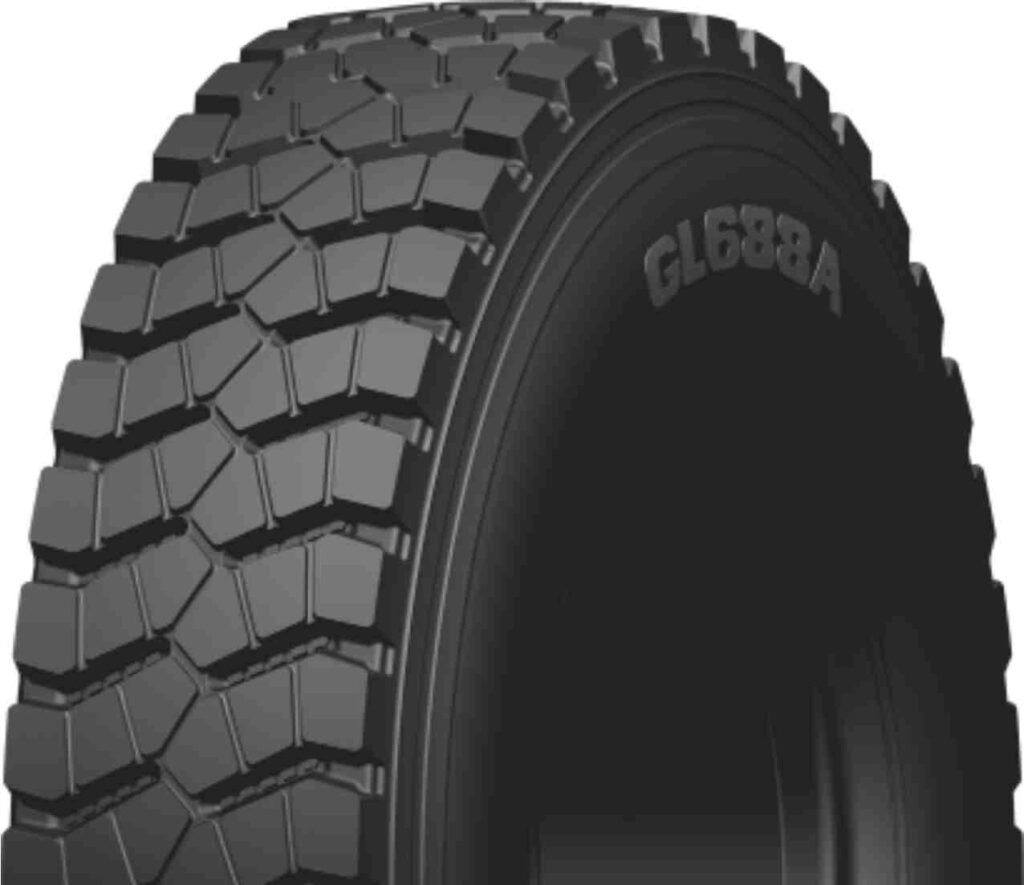

ADVANCE
GL688A
12.00R20 – 325/95R24
Radial construction. 7 sizes listed, 12.00R20 to 325/95R24.
- Sizes listed
- 6
- Construction
- radial
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | PR / Star | Load index | Speed symbol | Tube | Recommended rim | Overall diameter (mm) | Section width (mm) | Tread depth (mm) | Max load (kg) | Inflation (kPa) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12.00R20 | Radial | 20PR | S156/D153 | J | Tube type | 8.5 | 1,122 | 313 | 18.5 | 4,000 | 900 | Enquire 12.00R20 |
| 11R22.5 | Radial | 18PR | S149/D146 | L | Tubeless | 8.25 | 1,054 | 279 | 17 | 3,250 | 930 | Enquire 11R22.5 |
| 12R22.5 | Radial | 18PR | S152/D149 | L | Tubeless | 9 | 1,084 | 300 | 18 | 3,550 | 930 | Enquire 12R22.5 |
| 13R22.5 | Radial | 20PR | S156/D153 | J | Tubeless | 9.75 | 1,124 | 320 | 19.5 | 4,000 | 930 | Enquire 13R22.5 |
| 12.00R24 | Radial | 20PR | S160/D157 | K | Not specified | 8.5 | 1,222 | 315 | 18.5 | 4,500 | 900 | Enquire 12.00R24 |
| 325/95R24 | Radial | 20PR | S164/D162 | G | Not specified | 8.5 | 1,222 | 315 | 18.5 | 5,000 | 900 | Enquire 325/95R24 |
| 325/95R24 | Radial | 20PR | S164/D162 | K | Not specified | 8.5 | 1,222 | 315 | 18.5 | 5,000 | 900 | Enquire 325/95R24 |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: ADVANCE TBR 2025 catalogue
