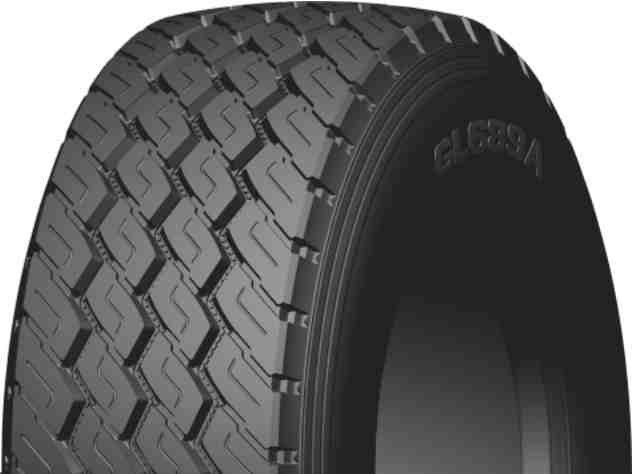

ADVANCE
GL689A+
10.00R20 – 12.00R20
Radial construction. 4 sizes listed, 10.00R20 to 12.00R20.
- Sizes listed
- 3
- Construction
- radial
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | PR / Star | Load index | Speed symbol | Tube | Recommended rim | Overall diameter (mm) | Section width (mm) | Tread depth (mm) | Max load (kg) | Inflation (kPa) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.00R20 | Radial | 16PR | S146/D143 | K | Tube type | 7.5 | 1,054 | 278 | 17.5 | 3,000 | 830 | Enquire 10.00R20 |
| 10.00R20 | Radial | 18PR | S149/D146 | J | Tube type | 7.5 | 1,054 | 278 | 17.5 | 3,250 | 930 | Enquire 10.00R20 |
| 11.00R20 | Radial | 18PR | S152/D149 | J | Tube type | 8 | 1,085 | 293 | 18 | 3,550 | 930 | Enquire 11.00R20 |
| 12.00R20 | Radial | 20PR | S156/D153 | J | Tube type | 8.5 | 1,125 | 315 | 18.5 | 4,000 | 900 | Enquire 12.00R20 |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: ADVANCE TBR 2025 catalogue
