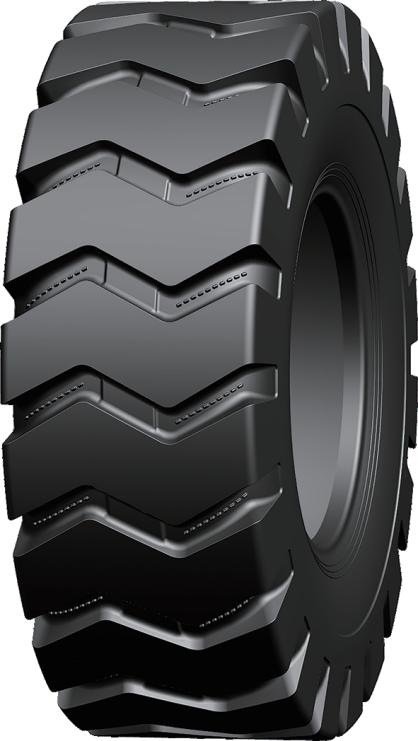

DONGHAO
L-3L
20.5/70-16 – 16/70-20 (405/70-20)
Bias construction. 2 sizes listed, 20.5/70-16 to 16/70-20 (405/70-20).
- Sizes listed
- 2
- Construction
- bias
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | PR / Star | Tube | Recommended rim | Overall diameter (mm) | Section width (mm) | Tread depth (mm) | Max load (kg) | Inflation (kPa) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 20.5/70-16 | Bias | 14PR | Tube type | 10.00 | 890 | 315 | 14 | 1,600 | 280 | Enquire 20.5/70-16 |
| 16/70-20 (405/70-20) | Bias | 14PR | Tube type | 13(SDC) | 1,070 | 405 | 18 | 2,900 | 350 | Enquire 16/70-20 (405/70-20) |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: DONGHAO pneumatic and solid tire catalogue
