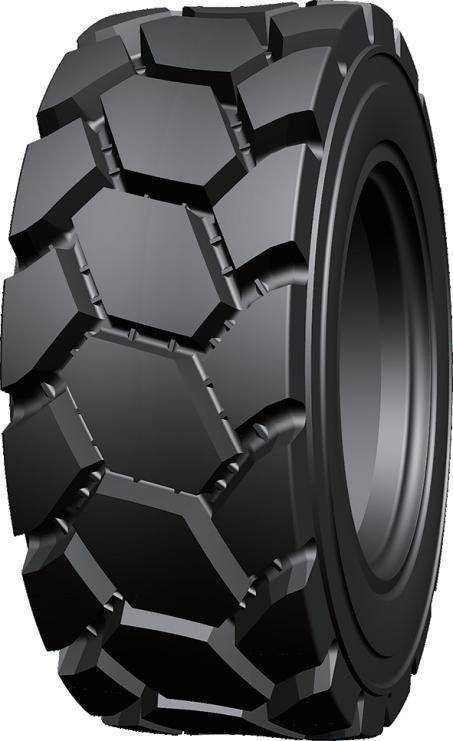

DONGHAO
L-5D
10-16.5NHS – 12-16.5NHS
Bias construction. 2 sizes listed, 10-16.5NHS to 12-16.5NHS.
- Sizes listed
- 2
- Construction
- bias
- Machines
- Ask us
Specifications
Specifications by size
Every size we list for this pattern, with its construction and ply rating. A size that is not listed here is quoted on request.
| Size | Construction | PR / Star | Tube | Recommended rim | Overall diameter (mm) | Section width (mm) | Tread depth (mm) | Max load (kg) | Inflation (kPa) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 10-16.5NHS | Bias | 12PR | Tubeless | 8.25 | 773 | 264 | 27 | 2,375 | 620 | Enquire 10-16.5NHS |
| 12-16.5NHS | Bias | 14PR | Tubeless | 9.75 | 831 | 307 | 35 | 3,075 | 620 | Enquire 12-16.5NHS |
Specifications are indicative. Confirm the final specification, availability and terms on the quotation.
Specification source: DONGHAO pneumatic and solid tire catalogue
